A.T.H Hafið samband fyrir pantanir! Eigum yfirleitt ekki allar stærðir og liti á lager þó svo hægt sé að skoða þær og velja.
200/200mm
Suspension Travel (F/R)
Service-Friendly Build
Full external cable routing and oversized bearings
Mixed Wheel Setup
Fast up front. Agile out back.
VPS - Virtual Pivot System
Suspension Platform
Ride Aligned
Bike setup guide
No Other Way Limited Lifetime Warranty
Gets you back on the trail as soon as possible

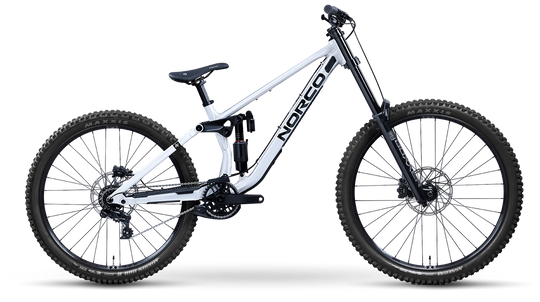

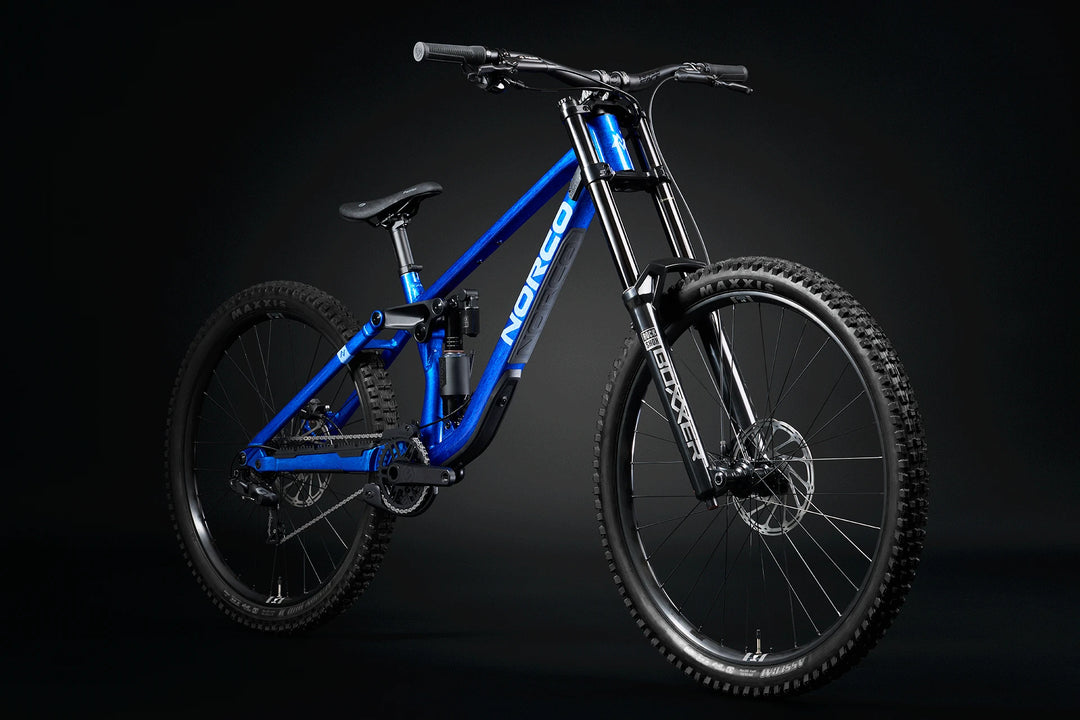

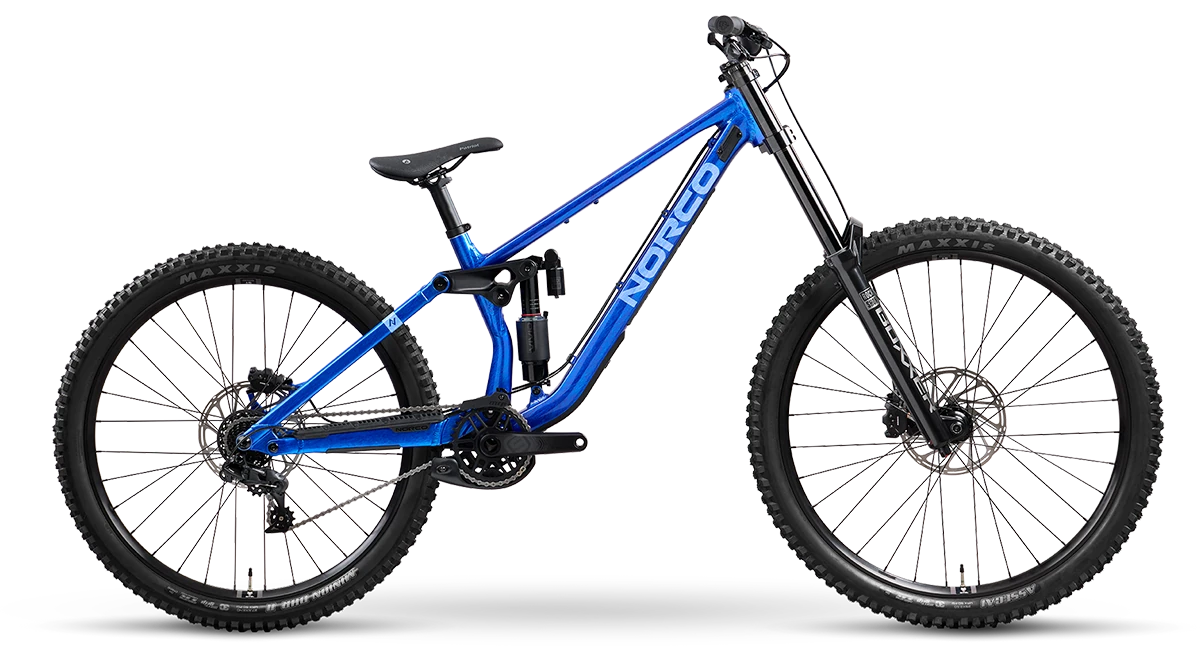

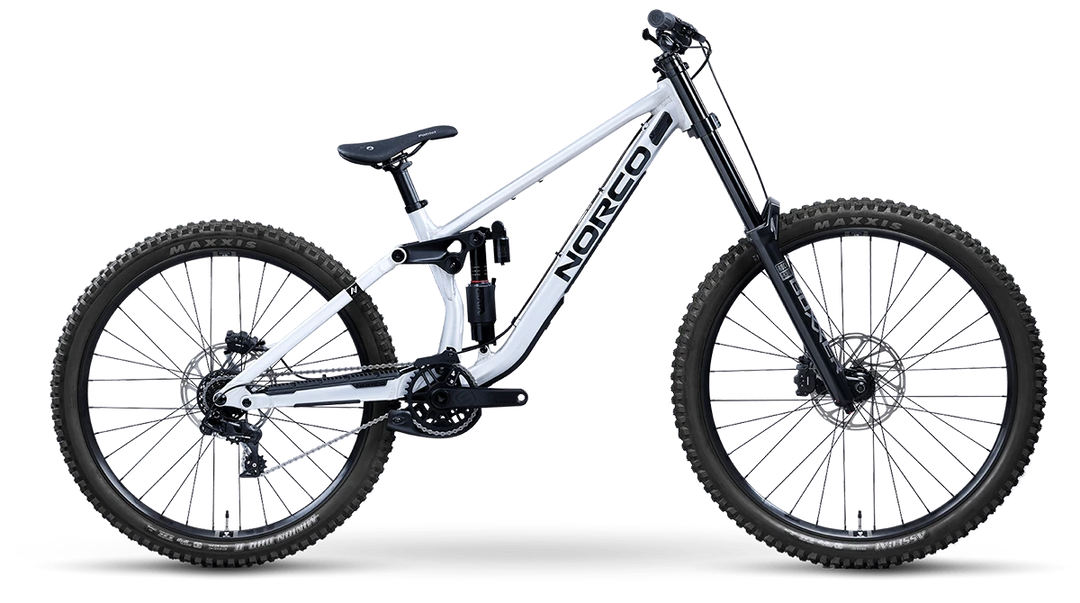

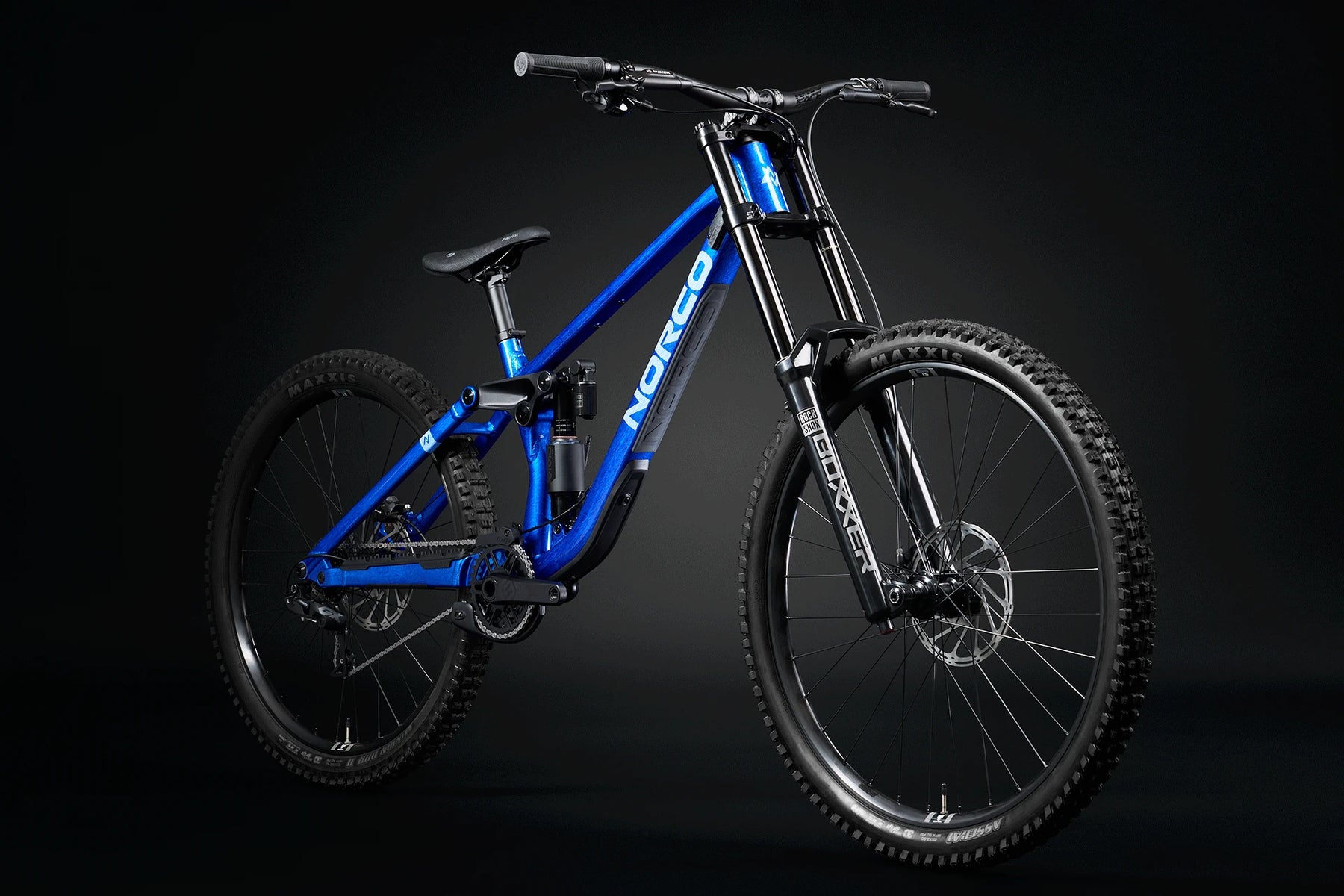

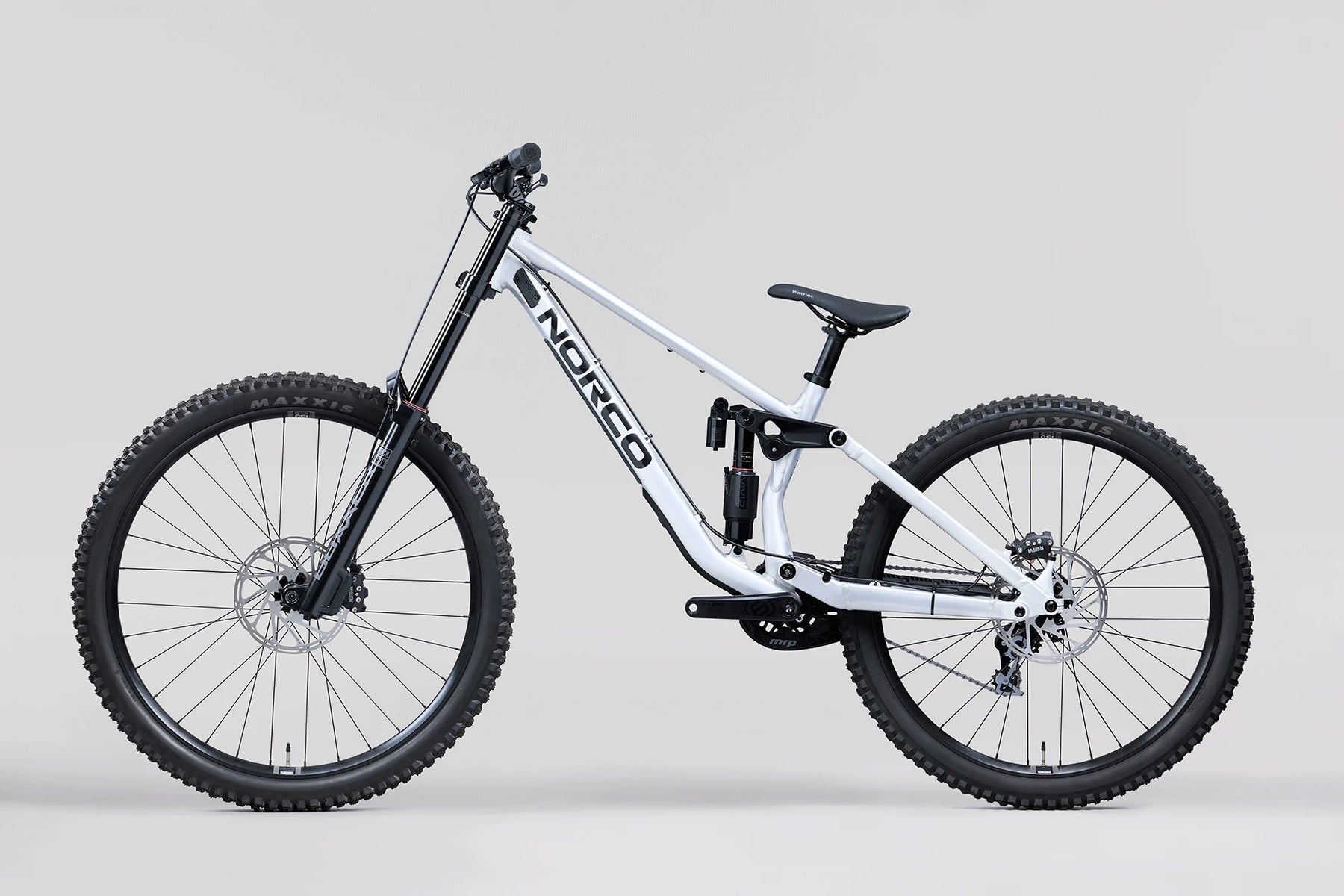

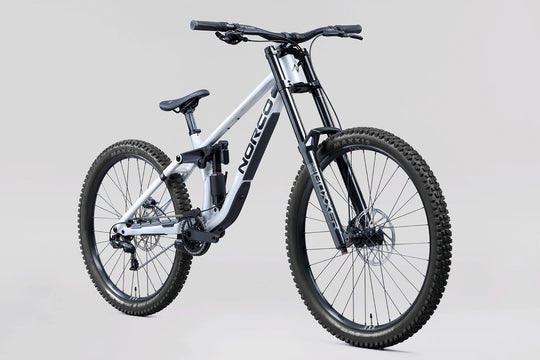

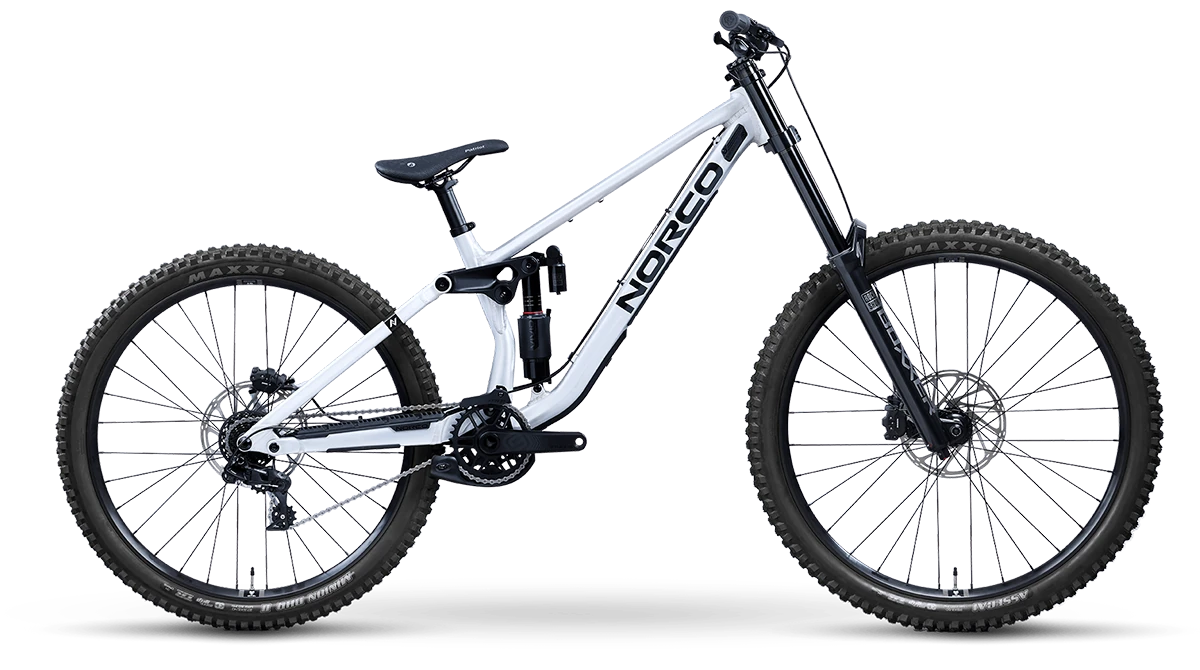

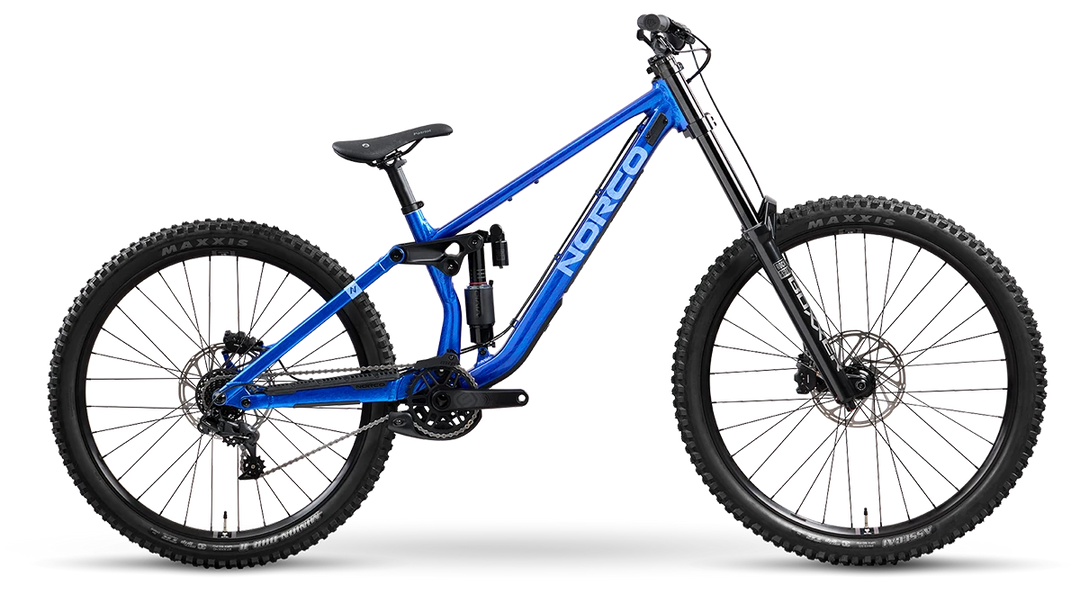

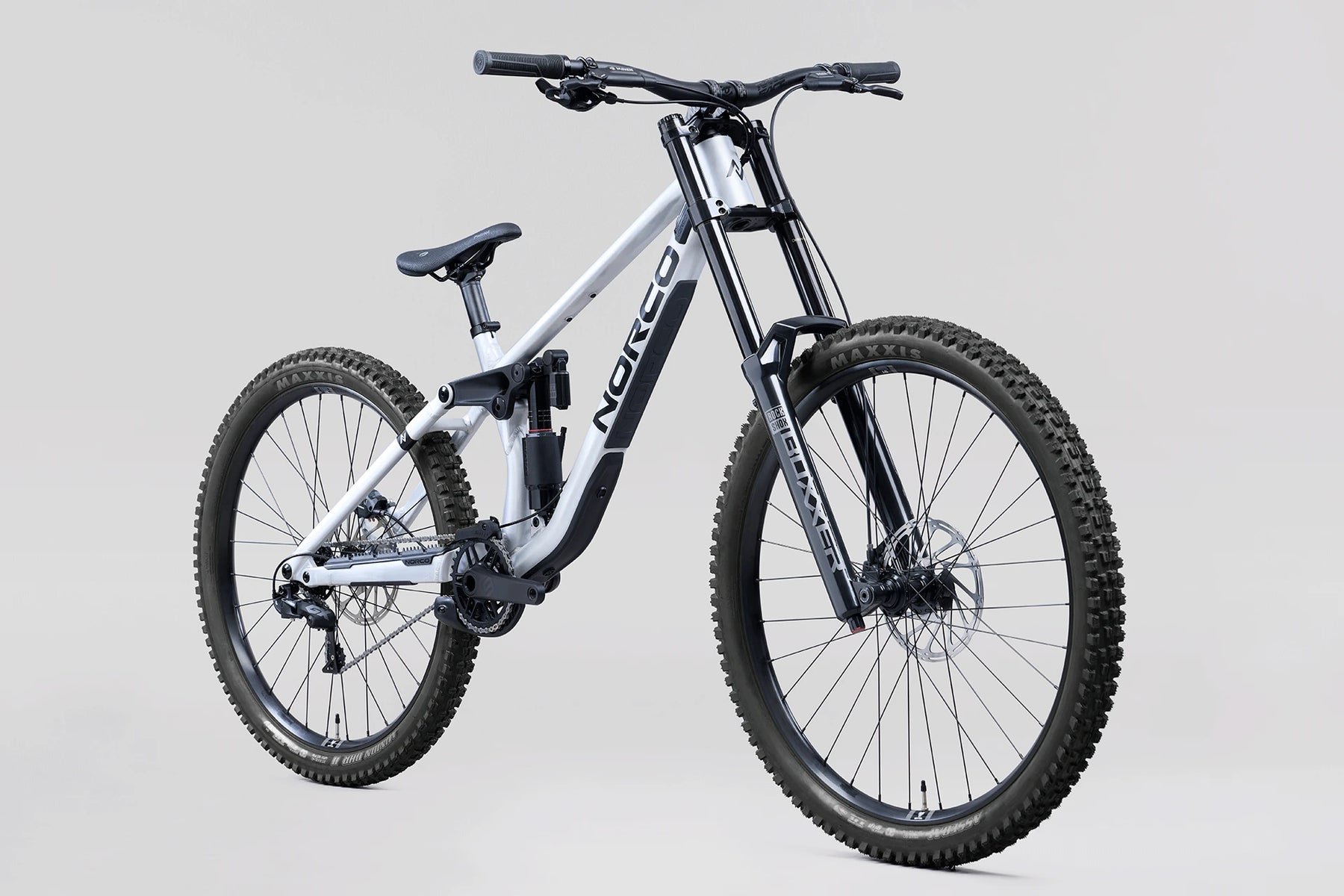

The Torrent DH A1 is built for riders who live for lift service, shuttle laps, and the feeling of dropping into a trail that pushes back, whether you want to throw shapes on A-Line or race between the tape.
200 mm of travel in a straight-up, no-nonsense package made to take a beating and keep coming back for more. It has a tough aluminum frame with size-specific geometry designed around dual crown forks and a mixed wheel setup — giving you the confidence to corner harder, brake later, and ride longer without worrying about anything but the next lap.
NO FLUFF, LESS FAFF.
The Torrent DH A1, 200 mm of travel in a tough no-nonsense package, with an aluminum frame built for park laps and big shuttle days.
Mixed-wheel setup and size-specific geometry keep it playful yet planted, while VPS suspension stays smooth and composed under braking and repeated impacts. Simple, durable, and easy to service, lap after lap.
Details
- Durable design. A tough, reliable build for rough riders.
- No fluff, less faff. Just get on and go, a ride built to last.
- Fit to ride, from groms to grown-ups.
- Take the hits, get the clips. Smooth, stable, low-maintenance performance, lap after lap.
- Ride Aligned - perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty
| Frame | Aluminum Frame, 200mm Travel, UDH| Ride Aligned™ |
| Fork | RockShox BoXXer Select D2, 200mm Travel, 52mm Offset |
| Rear Shock | RockShox Vivid Air Base, 225x75mm TR |
| Rear Shifter | SRAM GX DH. 7sp |
| Rear Derailleur | SRAM GX DH, Mid Cage |
| Crankset | Praxis Cadet DH9, 36T, 160mm (S1,S2), 165mm (S3,S4,S5) |
| Bottom Bracket | Praxis M30 BSA Threaded, 83mm |
| Cassette | SRAM CS PG-720 DH, 11-25T, 7 sp |
| Chain | SRAM PC-1110, 11sp |
| Chain Guide | MRP G5, 34-38T, (2-Bolt ISCG-05) |
| Front Brake | SRAM Maven Base, Metallic Pads |
| Front Brake Rotor | SRAM Centerline A2, 200mm, 2.0mm thickness, 6-Bolt |
| Rear Brake | SRAM Maven Base, Metallic Pads |
| Rear Brake Rotor | SRAM Centerline A2, 200mm, 2.0mm thickness, 6-Bolt |
| Brake Levers | SRAM Maven Base |

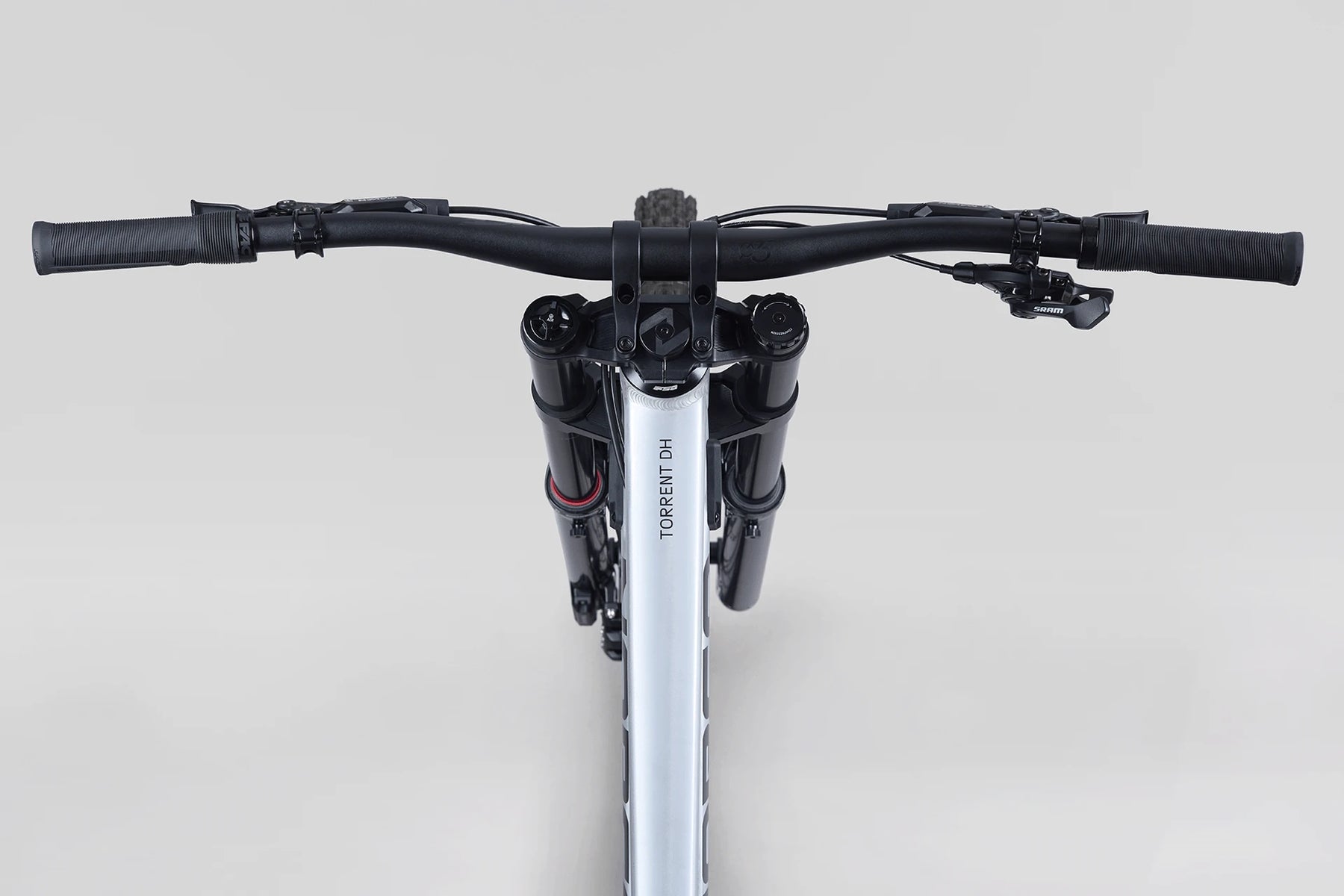

| Handlebar | RaceFace Chester, 780mm - 20mm Rise (S1,S2), 800mm - 35mm Rise (S3,S4,S5) |
| Stem | RaceFace Chester Direct Mount, 50mm |
| Seatpost | Norco Alloy, 31.6mm, Rigid |
| Headset | FSA No. 55/57-1 ZS, Sealed Bearing, Straight 1-1/8", ( ZS56/28.6 | ZS56/40 ) |
| Saddle | SDG Patriot |
| Grips | RaceFace Chester, 31mm |
| Front Hub | Novatech Sealed Bearing, 20x110mm Boost, 6-Bolt |
| Rear Hub | Formula DHT-148 4SB, 12x148mm Boost, HG, 32h, 6-bolt |
| Rims | WTB ST Tough TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R |
| Front Tire | Maxxis Assegai, 3C MaxxGrip DH, 29x2.5", Folding |
| Rear Tire | Maxxis Minion DHR II, 3C Maxx Grip DH, 27.5.5x2.4", Folding |
| Weight | 17.94 Kg (39.52 Lbs) |
| Weight Size | S3 |
Geometry
| 1 | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
| Travel (mm front/mm rear) |
200/200
|
|||||
| Reach | 420 | 440 | 460 | 480 | 500 | |
| Stack | 632 | 637 | 638 | 642 | 647 | |
| HTA | Head Tube Angle |
63.5
|
63
|
|||
| OS | Fork Offset |
52
|
||||
| ST | Seat Tube Length |
390
|
400 | 415 | ||
| STA | Effective Seat Tube Angle |
78.5
|
77.5 | 77 | 76.5 | |
| RC | Rear Centre Length | 430 | 435 | 440 | 445 | 450 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) |
22/2
|
||||
| BBH | Bottom Bracket Height |
352
|
||||
| HTT | Horizontal Top Tube | 576 | 589 | 616 | 638 | 661 |
| WB | Wheelbase | 1212 | 1240 | 1272 | 1299 | 1327 |
| SOH | Standover | 689 |
691
|
697 | 698 | |
| HT | Head Tube Length | 100 | 105 | 110 | 115 | 120 |
| Trail |
52
|
|||||
| Recommended Seatpost Drop |
-
|
|||||
| Maximum Post Insertion |
200
|
212 | 226 | |||
| Stem Length |
50
|
|||||
| Crank Length |
160
|
165
|
||||
| Tire Size |
2.35" – 2.5"
|
|||||
| Water Bottle Compatible |
-
|
|||||
