Up to 120Nm Torque
Unlock full Torque via the Bosch eBike Flow App
Up to 750W Power
With up to 600% Pedal Assist. Unlock full Power via the Bosch eBike Flow App
800Wh Battery
+250Wh Range Extender Compatible
Bosch Drive System
Performance Line CX - Gen 5
Ride Aligned
Bike setup guide
Bosch eBike Flow App
Personalize Your Ride

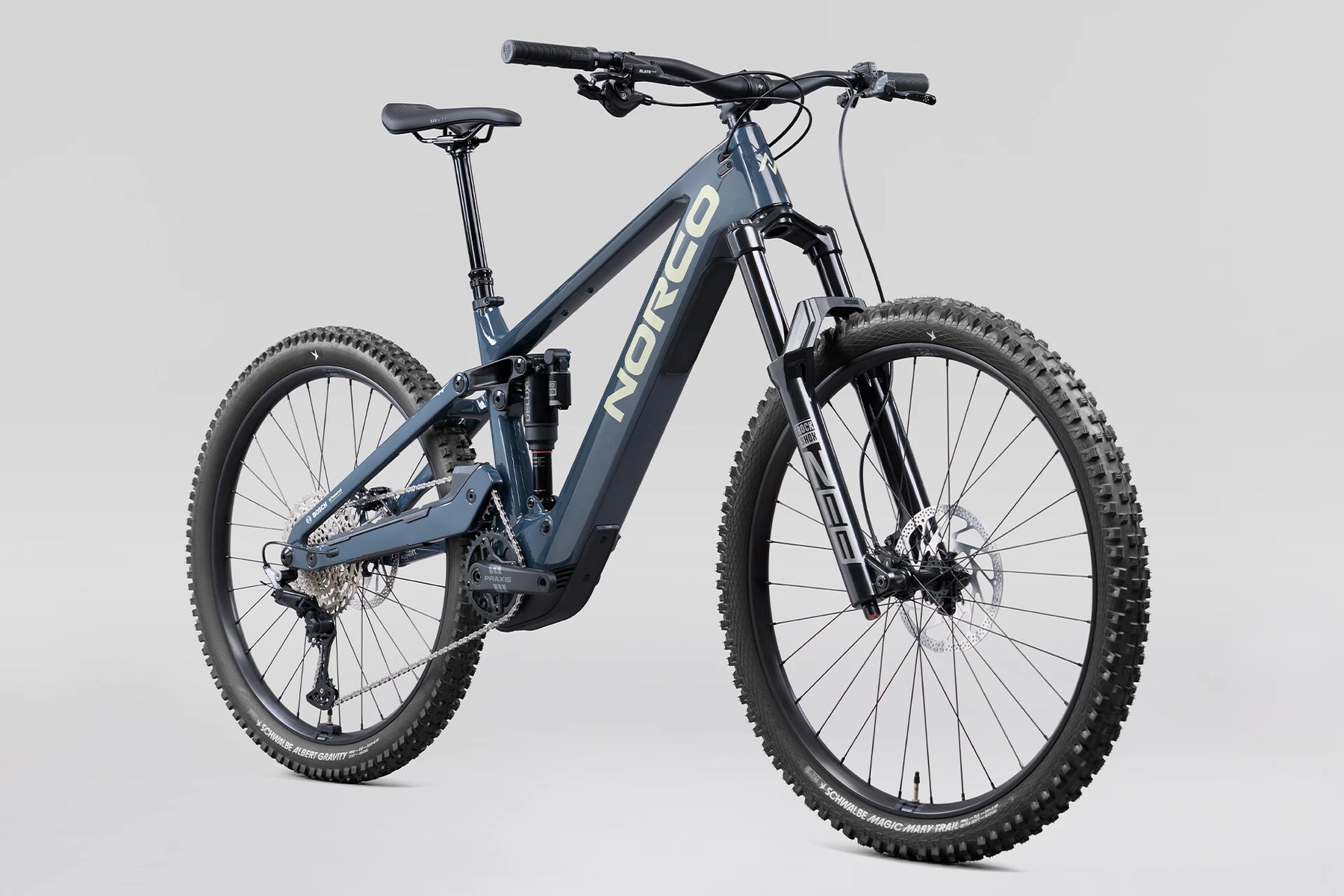

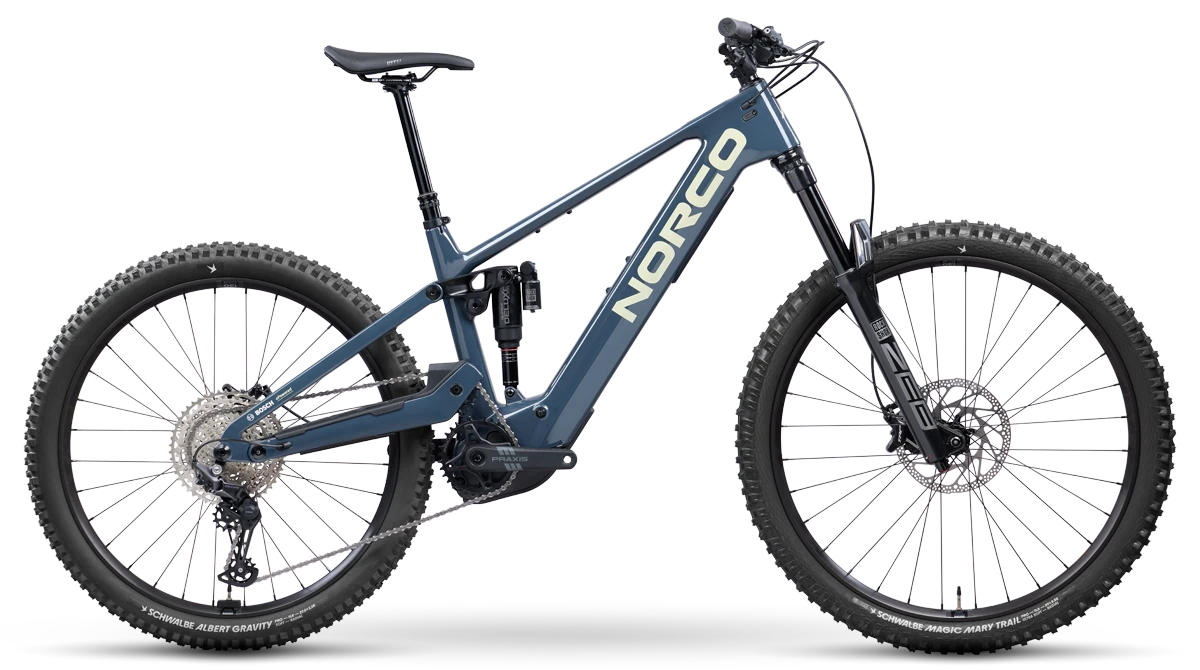

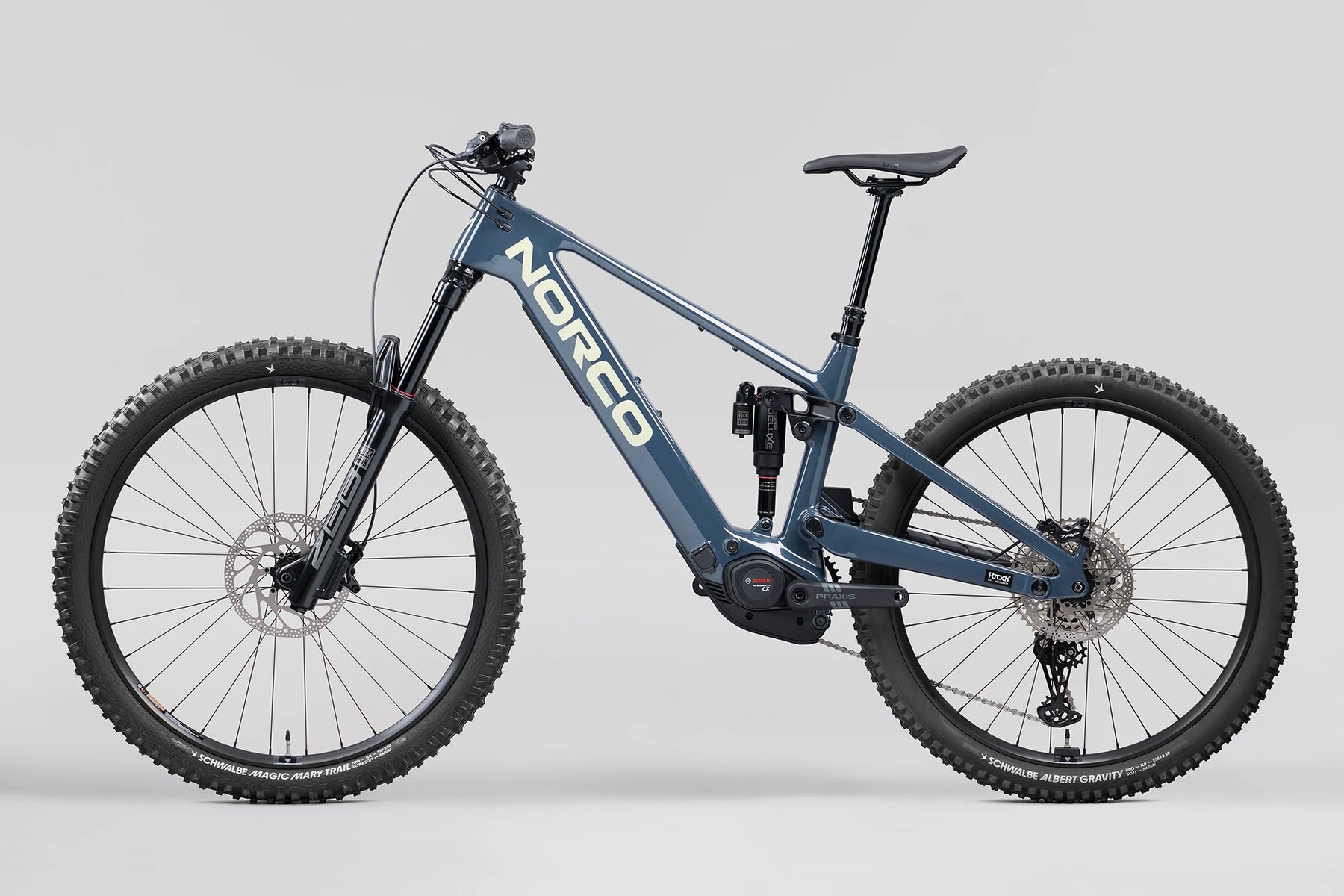

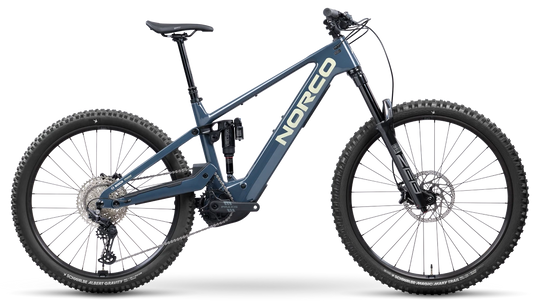

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.
Sight VLT CX comes out of the box with 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, for an ideal blend of power and enjoyment while balancing wear and range. Update through the Bosch Flow App to access even higher levels, for up to 120Nm, up to 750 watts, and up to 600% support.

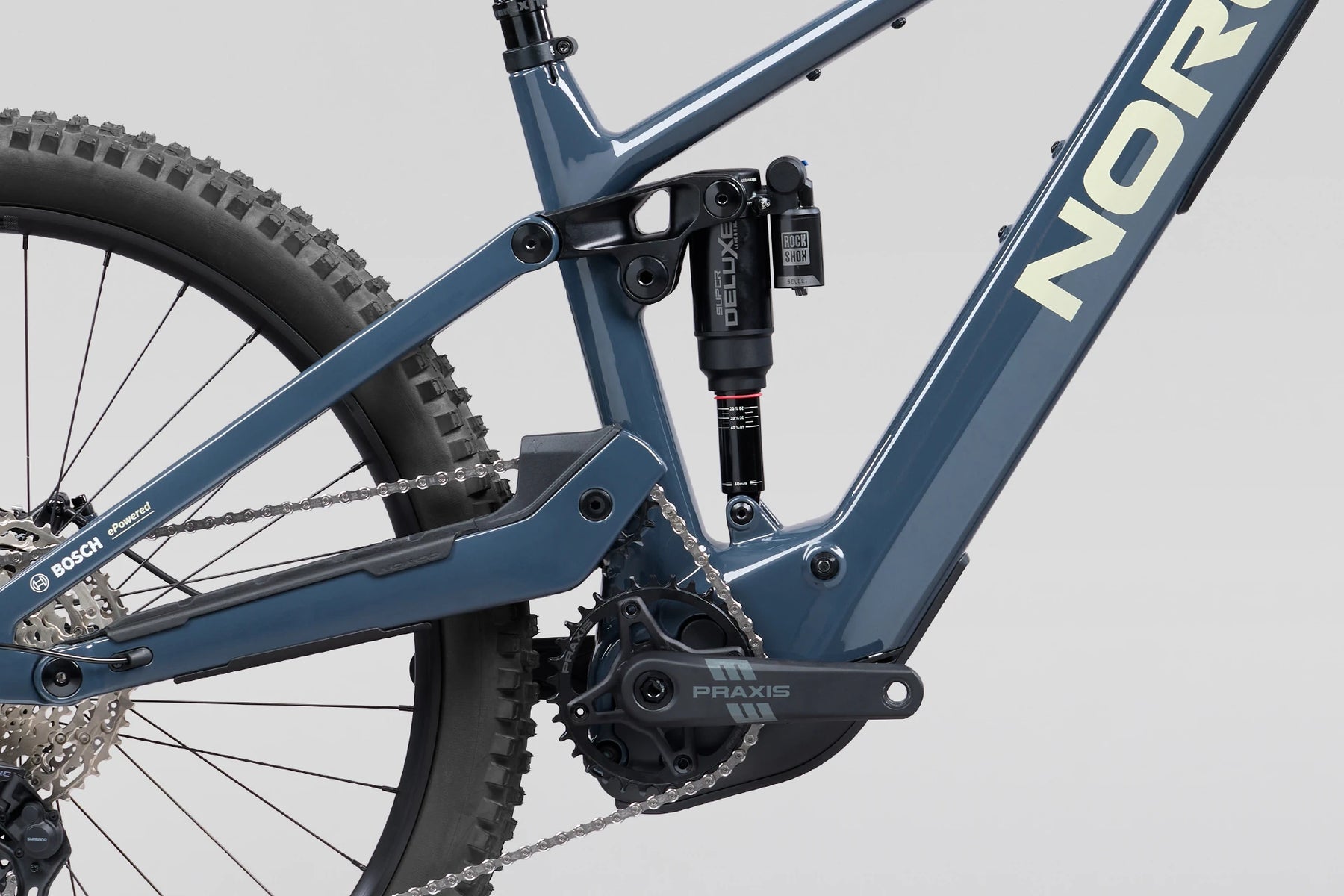

The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
Details
- The perfect blend of power and low weight
- Quieter motor – all you hear is the trail
- Maximum drive unit durability
- Train harder, ride longer
- Uncompromised ride quality across sizes
- VPSHP suspension platform
- Bosch eBike Flow App – personalize your experience and stay up to date
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
- No Other Way Limited Lifetime Warranty
| Frame | Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |

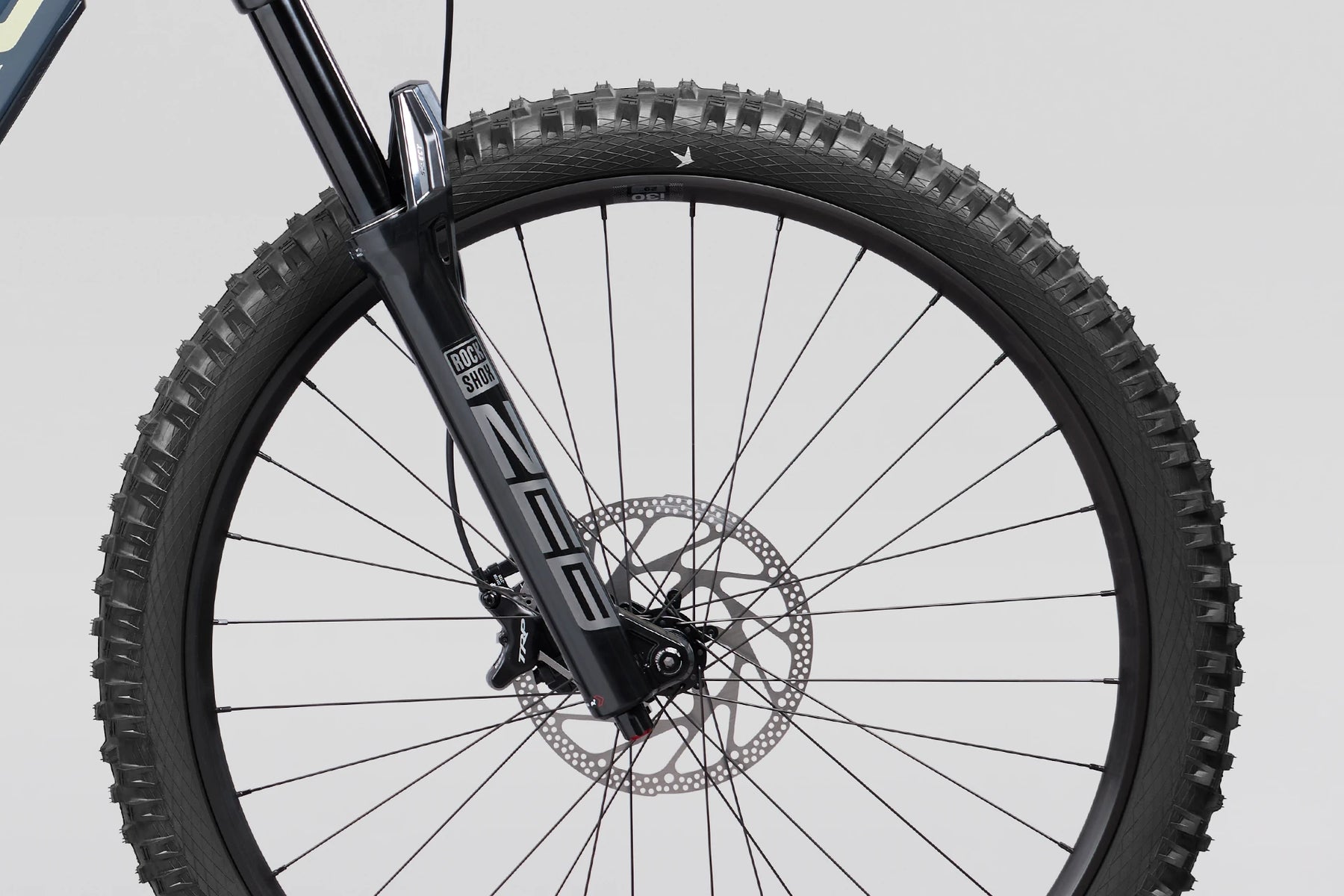

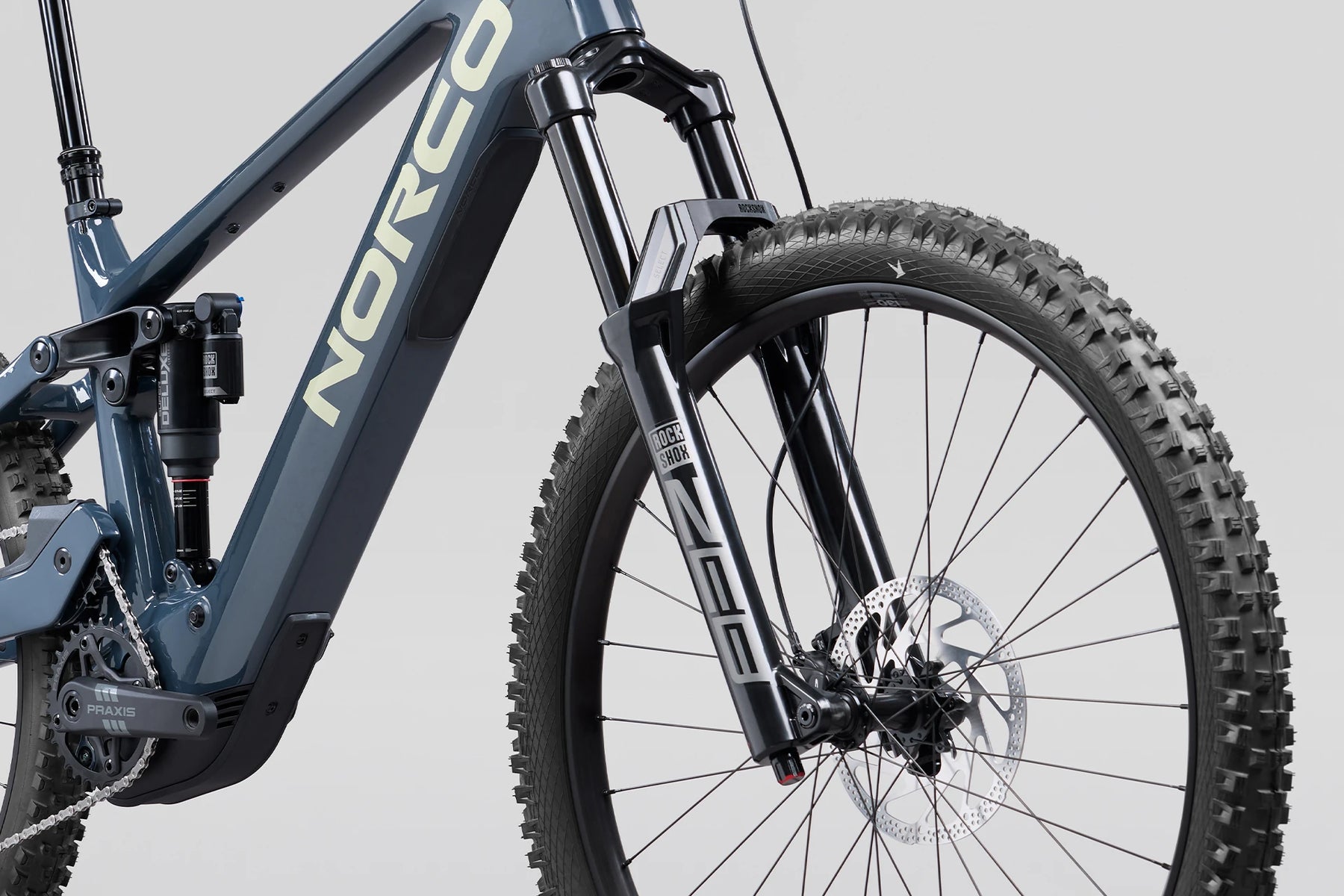

| Fork | RockShox Zeb Select,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included |
| Rear Shock | Rock Shox Super Deluxe Select, 205x60mm TR |
| Rear Shifter | Shimano Deore SL-M6100-R, 12spd |
| Rear Derailleur | Shimano Deore RD-M6100, SGS, 12spd |
| Crankset | Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5) |
| Bottom Bracket | Bosch BDU38 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12sp |
| Chain | Shimano Deore CN-M6100, 12spd |
| Front Brake | TRP Slate EVO, Oraganic Pads |
| Front Brake Rotor | TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt |
| Rear Brake | TRP Slate EVO, Oraganic Pads |
| Rear Brake Rotor | TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt |
| Brake Levers | TRP Slate EVO |
| Handlebar | Norco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5) |
| Stem | Norco 6061, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YSP23KL, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5) |
| Headset | FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| Saddle | WTB Rocket Fusion Med, 142x250 mm |
| Grips | WTB Wavelength, 140mm Length |
| Tool | OneUp EDC Lite |
| Front Hub | Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock |
| Rear Hub | Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock |
| Rims | WTB ST i30 TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R |
| Front Tire | Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5" |
| Rear Tire | Schwalbe Albert, Gravity Pro, Soft, Radial, 27.5x2.5" |
| Spokes/Nipples | Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel |
| Drive Unit | Bosch Performance Line CX, 100 Nm / 750W |
| Battery | Bosh Power Tube 800 Wh |

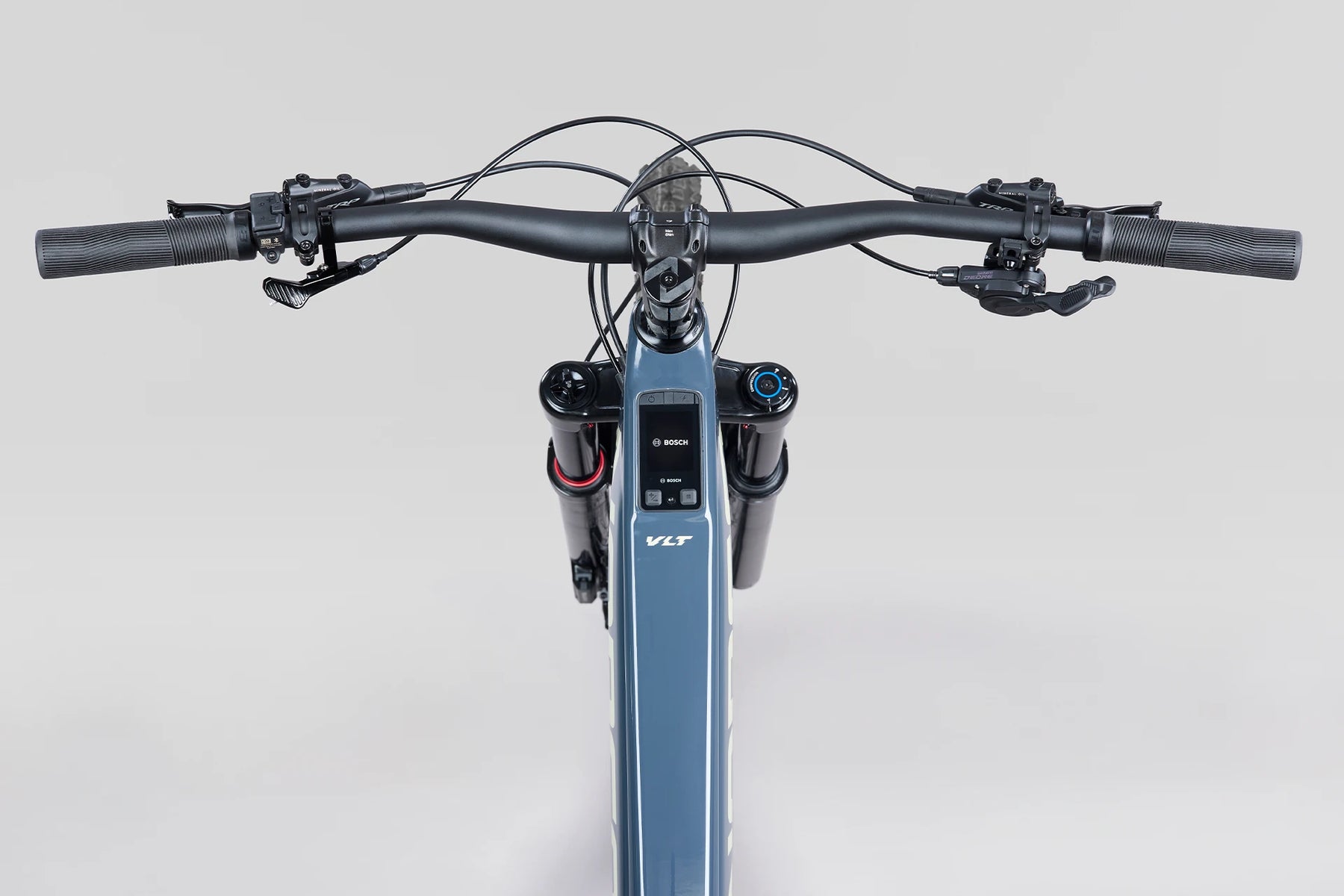

| Display | Kiox 400c |
| Weight | 23.33 kg (51.4 lbs) |
| Weight Size | S3 |
Geometry
| 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
| Travel (mm front/mm rear) |
160/150
|
||||
| Reach | 447.5 | 472.5 | 497.5 | 522.5 | |
| Stack | 627 | 636 | 645 | 654 | |
| HTA | Head Tube Angle |
64
|
|||
| OS | Fork Offset |
44
|
|||
| ST | Seat Tube Length | 395 | 415 | 445 | 475 |
| STA | Effective Seat Tube Angle | 77.25 | 77.5 | 77.75 | 78 |
| RC | Rear Centre Length | 432 | 436 | 440 | 444 |
| RC | Rear Centre Length at Sag | 441 | 445 | 449 | 453 |
| BB | Bottom Bracket Drop |
25/5
|
|||
| BBH | Bottom Bracket Height |
349
|
|||
| HTT | Horizontal Top Tube | 589 | 613 | 637 | 661 |
| WB | Wheelbase | 1222 | 1255 | 1289 | 1322 |
| SOH | Standover | 701 | 711 | 714 | 729 |
| HT | Head Tube Length | 115 | 125 | 135 | 145 |
| Trail |
133
|
||||
| Recommended Seatpost Drop | 150 | 170 |
200
|
||
| Maximum Post Insertion | 250 | 270 | 300 | 330 | |
| Stem Length |
40
|
||||
| Crank Length |
165
|
||||
| Tire Size |
2.35" – 2.6"
|
||||
| Water Bottle Compatible | 1 x 620 mL |
1 x 750 mL
|
|||
